In Internet communication, IP addressing is a cornerstone technology that allows devices to connect and exchange information seamlessly. For Internet Service Providers (ISPs) and IT professionals, understanding IP subnetting and CIDR (Classless Inter-Domain Routing) is essential for efficient network management and scalability.

This article delves into IP subnetting and CIDR concepts, highlighting their significance and practical application.

What Is IP Subnetting?

IP subnetting is the process of dividing a large IP network into smaller, more manageable segments called subnets. It’s like splitting a large parcel of land into smaller lots for specific use, allowing better organization and utilization.

Why Subnet?

Efficient Use of IP Addresses: With the finite IPv4 address space, subnetting ensures that addresses are allocated according to the specific needs of different network segments.

Improved Security: By segmenting networks, sensitive data can be isolated, reducing the risk of unauthorized access.

Reduced Network Traffic: Subnetting localizes traffic within each subnet, reducing congestion and improving performance.

CIDR: Classless Inter-Domain Routing

Introduced in the 1990s, CIDR replaced the rigid class-based system of IP addressing. CIDR provides a more flexible and efficient way to allocate IP addresses by allowing subnet masks of variable lengths.

Key Features of CIDR

Variable-Length Subnet Masking (VLSM): CIDR allows network administrators to define subnet masks of varying lengths, optimizing address utilization.

Aggregation (Supernetting): CIDR enables route aggregation, combining multiple IP networks into a single, summarized route. This reduces the size of routing tables and improves router efficiency.

Elimination of Classes: Traditional IP classes (A, B, C) are no longer restrictive; with CIDR, the network portion of an address is defined by the prefix length (e.g., /8, /16, /24).

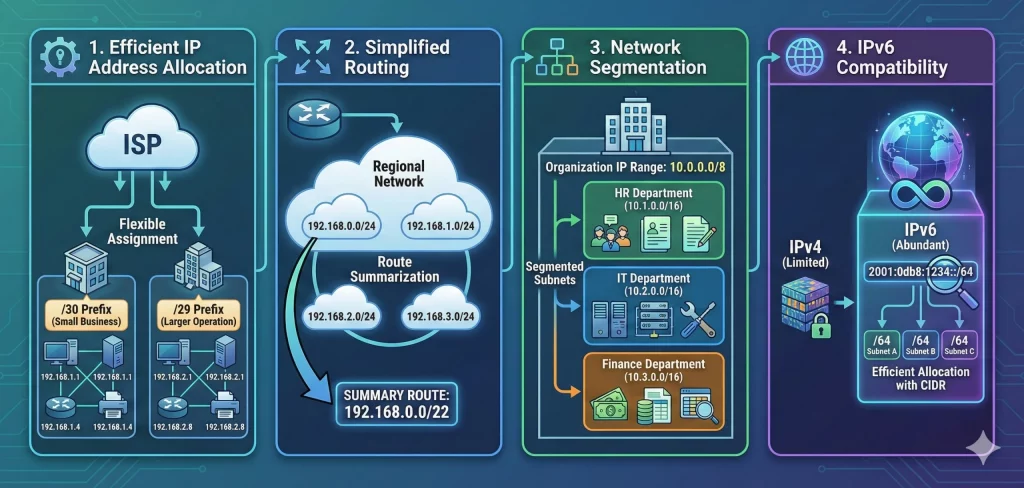

Practical Applications of Subnetting and CIDR

1. Efficient IP Address Allocation

ISPs often face the challenge of allocating IP addresses efficiently to customers. With CIDR, an ISP can allocate prefixes such as /30 for small businesses needing 4 addresses or /29 for slightly larger operations requiring 8 addresses.

2. Simplified Routing

Subnetting combined with CIDR allows for route summarization. For example, an ISP managing several networks in the range 192.168.0.0/24 through 192.168.3.0/24 can summarize these into a single route: 192.168.0.0/22.

3. Network Segmentation

Organizations can segment their networks by departments or functions. For instance, an IP range like 10.0.0.0/8 can be divided into subnets for HR (10.1.0.0/16), IT (10.2.0.0/16), and so on.

4. IPv6 Compatibility

CIDR is critical in IPv6, where addresses are plentiful, but efficient allocation is still necessary. With its 128-bit addressing scheme, IPv6 uses CIDR to break large address spaces into usable subnets (e.g., 2001:0db8:1234::/64).

In a nutshell

IP subnetting and CIDR are indispensable tools for managing modern networks. They enable ISPs and IT professionals to allocate IP addresses efficiently, reduce network congestion, and simplify routing. Mastering these concepts is crucial in the era of increasing internet connectivity and the transition to IPv6. With thoughtful planning and the right tools, subnetting and CIDR can significantly enhance network performance and scalability.
